Detailed parameters

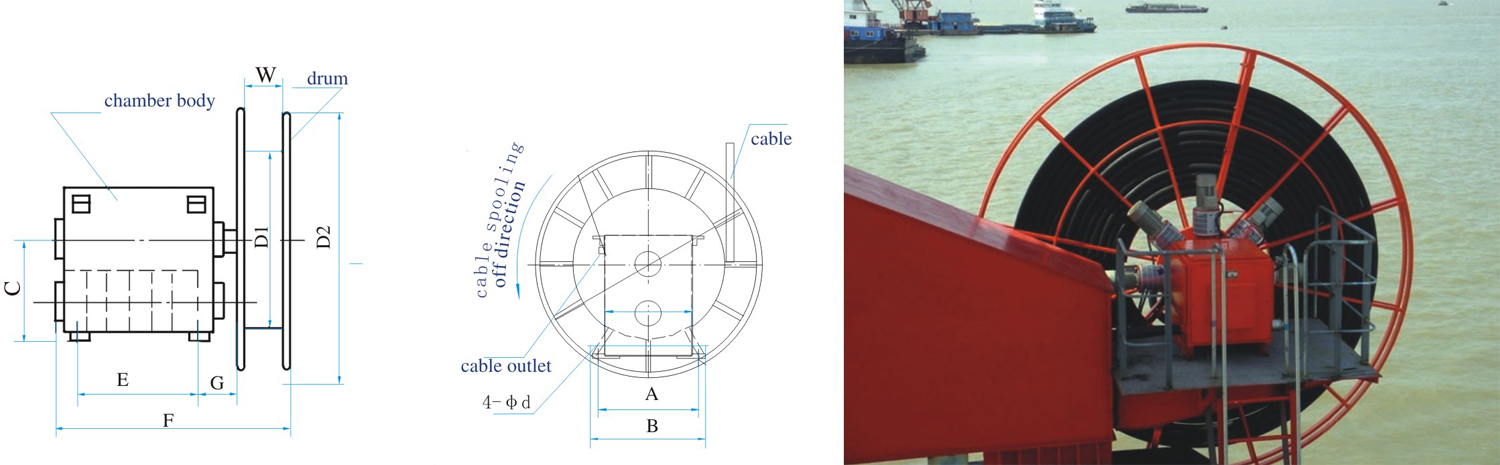

Overall dimension drawing

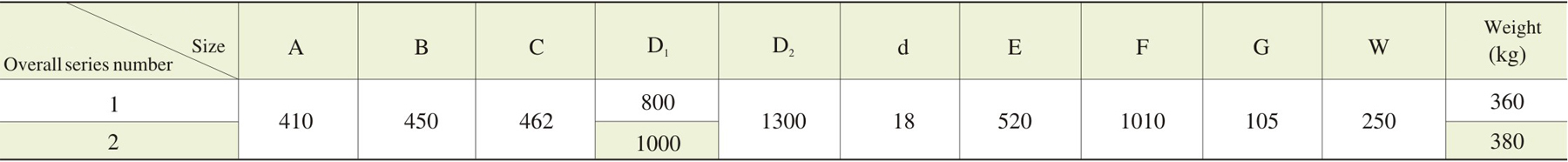

Overall dimension table

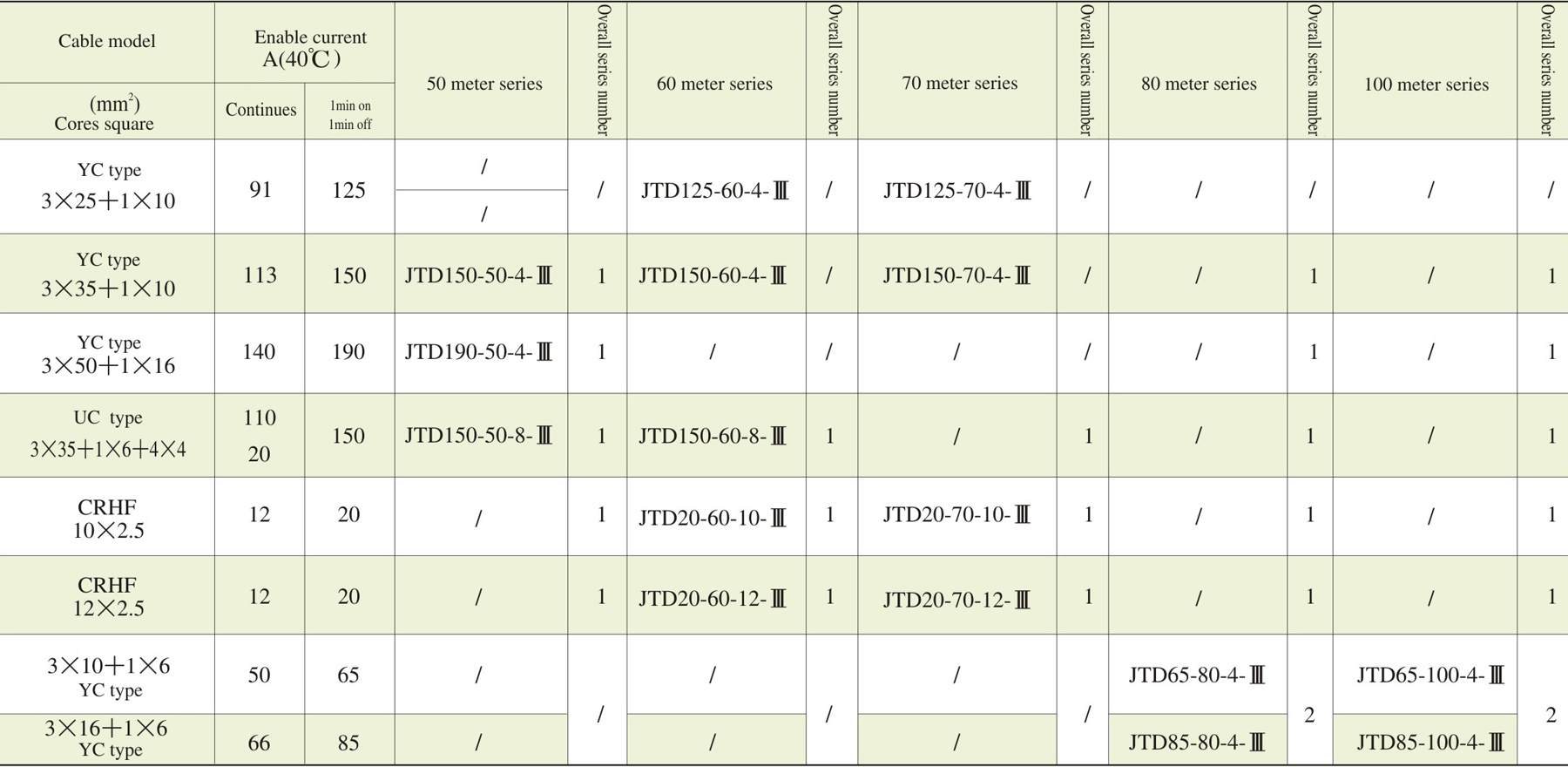

Main technical data
Model selection attention:
1、This series shall be used for installation pattern C、D shown in the sketch(figure P1)、namely cable body fixed on the mobile objects or on ground.
2、The customer provides cable.
