STQOL Series Rectifying Control Equipment of Strong Excitation Control Mode
This serial product has the characteristics of strong excitation (DC voltage 290V) when attracting, weak excitation (DC voltage 200V) when transporting, which can not only reduce the electricity consumption, but also improve the handling vol……
Detailed parameters
This serial product has the characteristics of strong excitation (DC voltage 290V) when attracting, weak excitation (DC voltage 200V) when transporting, which can not only reduce the electricity consumption, but also improve the handling volume. It is an ideal corollary equipment for being used in the case of transporting loose materials, such as scraps. Generally, it can increase the working efficiency by 15-30%.
When the capacity of this serial product is less than or equal to 19kw, the rectifying transformer will be installed inside; when the capacity is equal to or more than 25kw, the rectifying transformer will be installed outside.

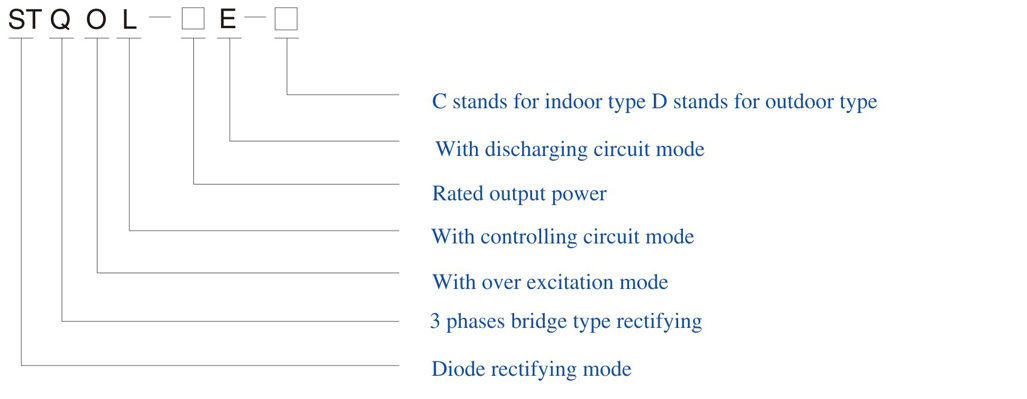

Model description

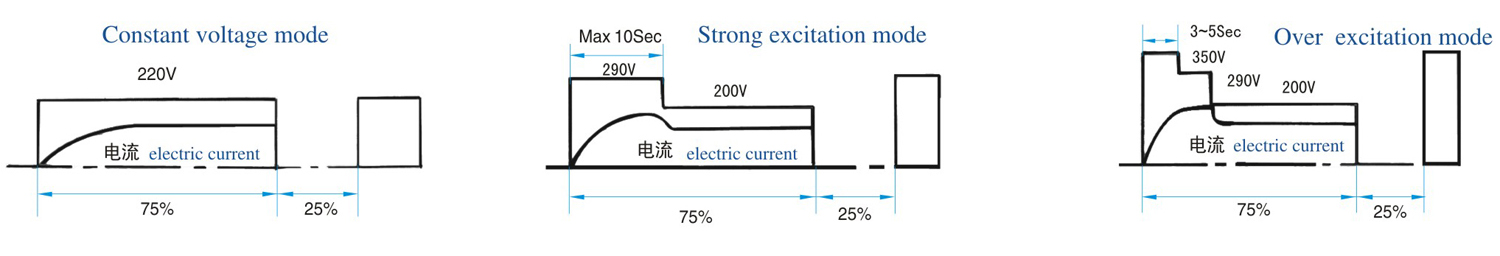

Control mode & characteristic curve of voltage and current
Model selection & Attentions:If the user needs over excitation of voltage 350V,please make special statement in order to do additional design.The over excitation control mode is of STQSOL Series.

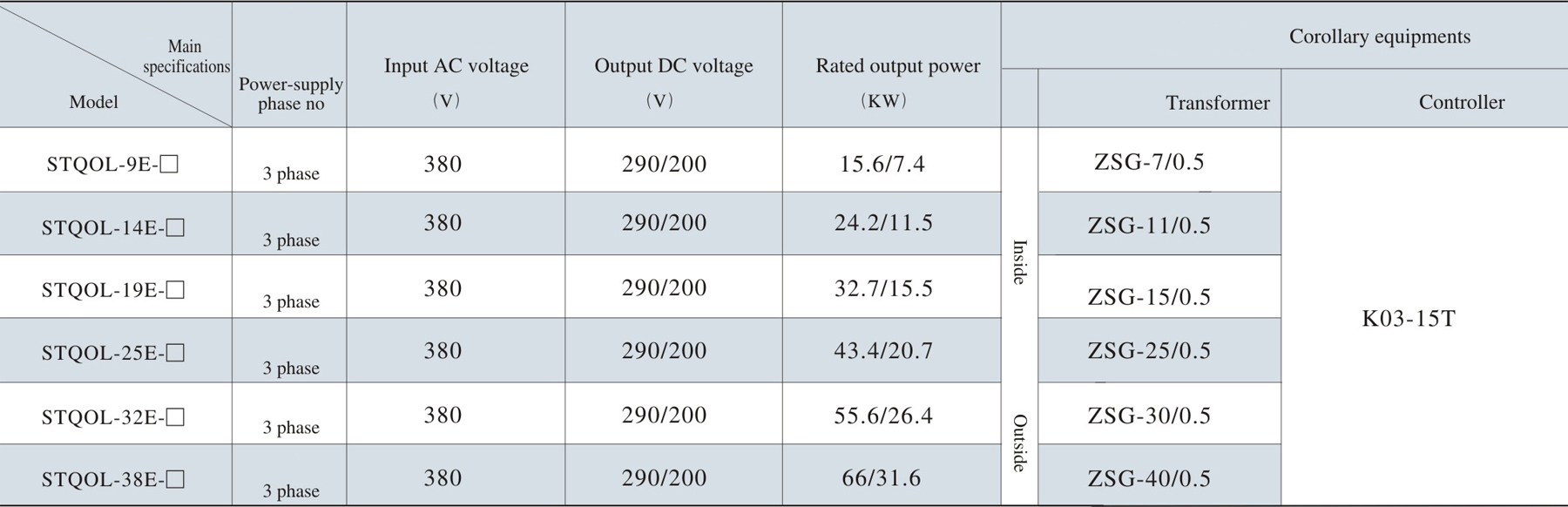

Main Specifications

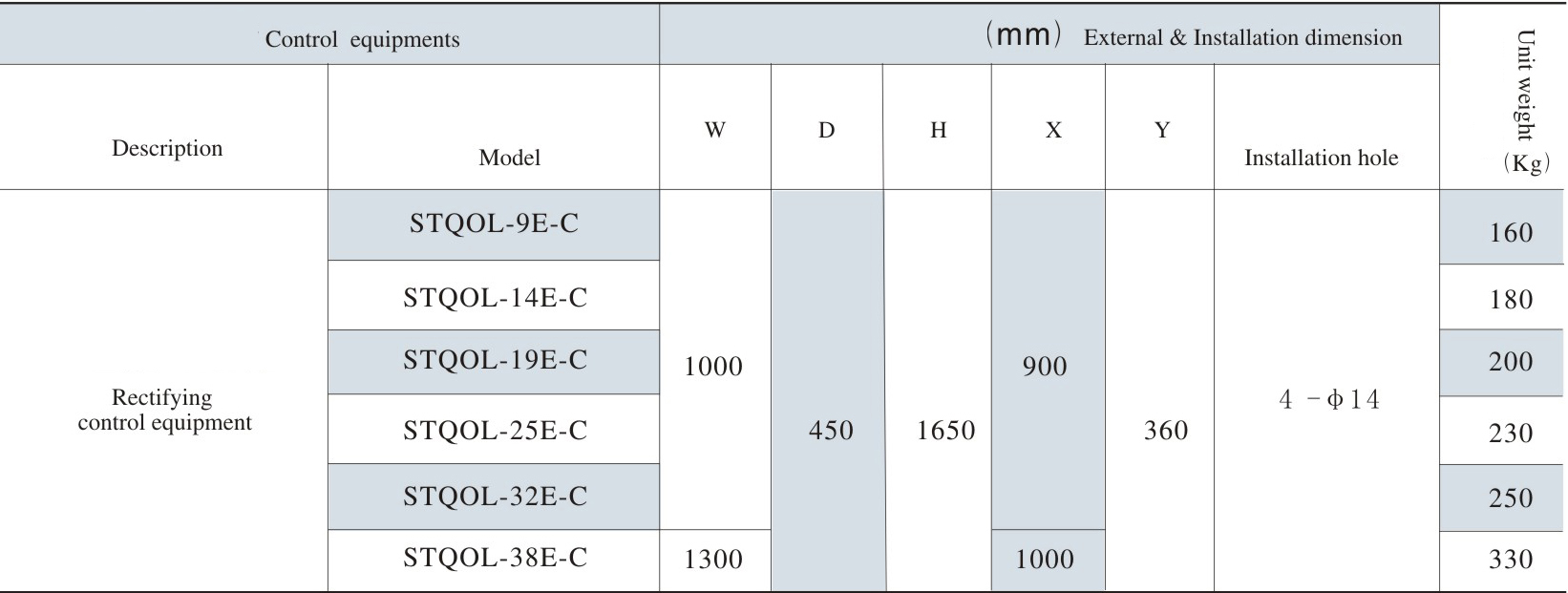

External dimension
