Series YL1 magnetic wheel
The series is to permanent magnetic type wheel which makes the magnet, axis, outer roller into a whole. Mostly suit for being used as mail wheel of belt conveyer. It features the strong separator capacity due to generate strong magnetic fiel……
Detailed parameters
The series is to permanent magnetic type wheel which makes the magnet, axis, outer roller into a whole. Mostly suit for being used as mail wheel of belt conveyer. It features the strong separator capacity due to generate strong magnetic field as well as simplified and consolidated structure. Further more its overall dimension and installing size are same with mail wheel type of TD-75 belt conveyer, easy to maintain.

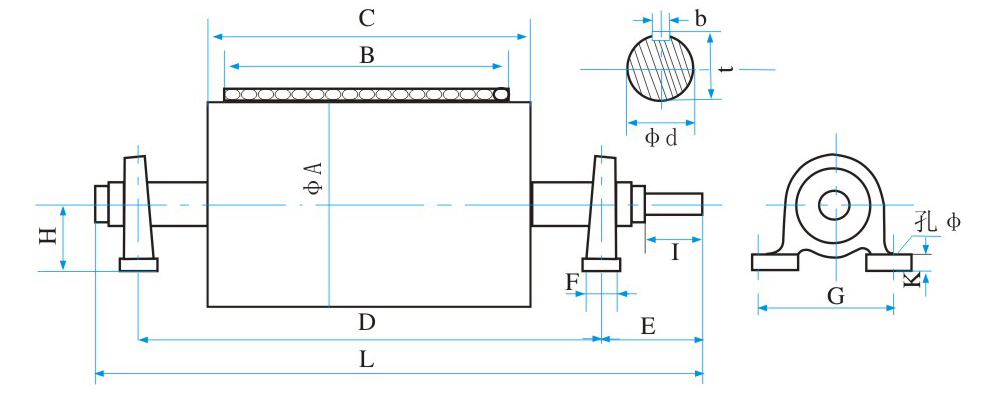

Overall dimension drawing

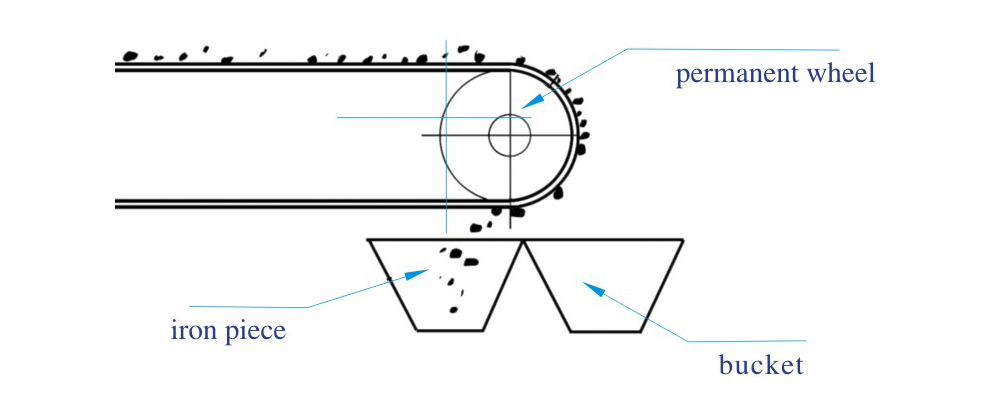

Operation principle sketch

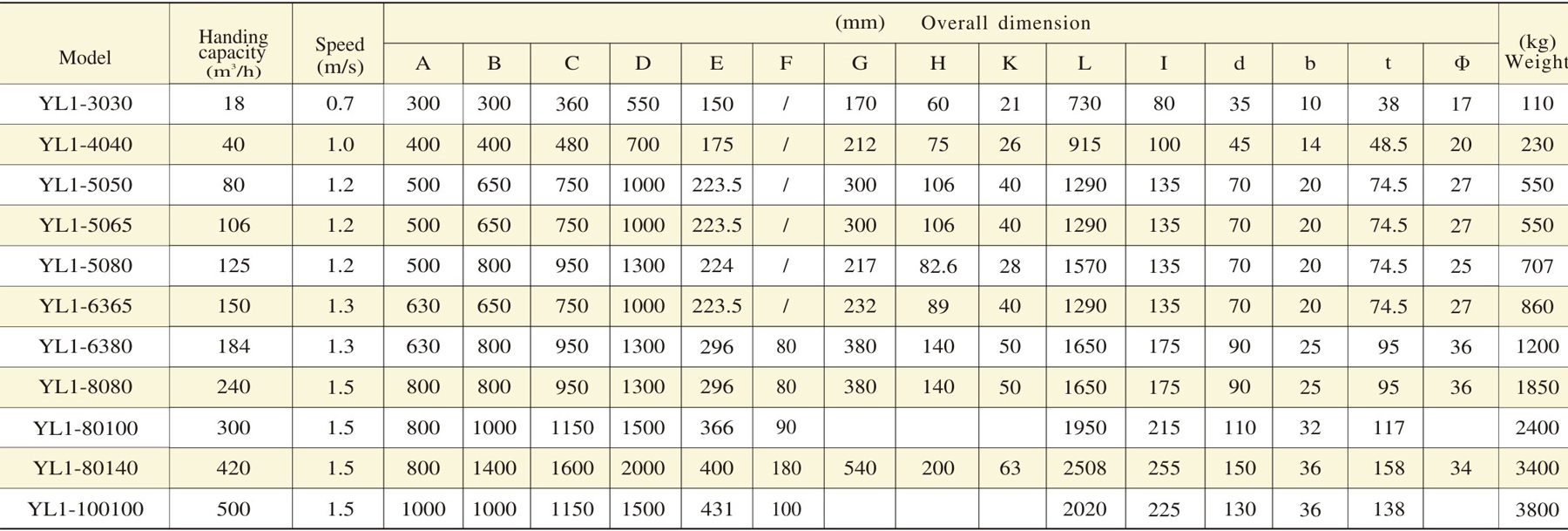

Main technical data
Our company also can provide with varicty of model and specification products such as YB-series permanent plate magnet,YG2 series magnetic roller(wet type),
MG2 series electromagnet type magnetic roller,YS series permanent magnetic type grille magnet and ZMG circle thpe shaking impulse high ladder magnetic selector.Welcome to choose and order.
