The series is designed to fix circular permanent magnet on axis; makes the non-magnetism roller turn tube along the circle. It can be found out from the operation principle picture that after the raw materials dealt with are supplied above, the magnetic impurity is attracted by the magnet on the surface of the magnetism roller, which have been brought to the underpants of roller with the rotation of tube, after having reached position of non-magnetic place, the impurity falls down.

1. Only needs to offer power to make magnetism roller rotatmg, economically.

2. Through the adjustment of the magnetization angle, even the smalliron powder can be separated too.

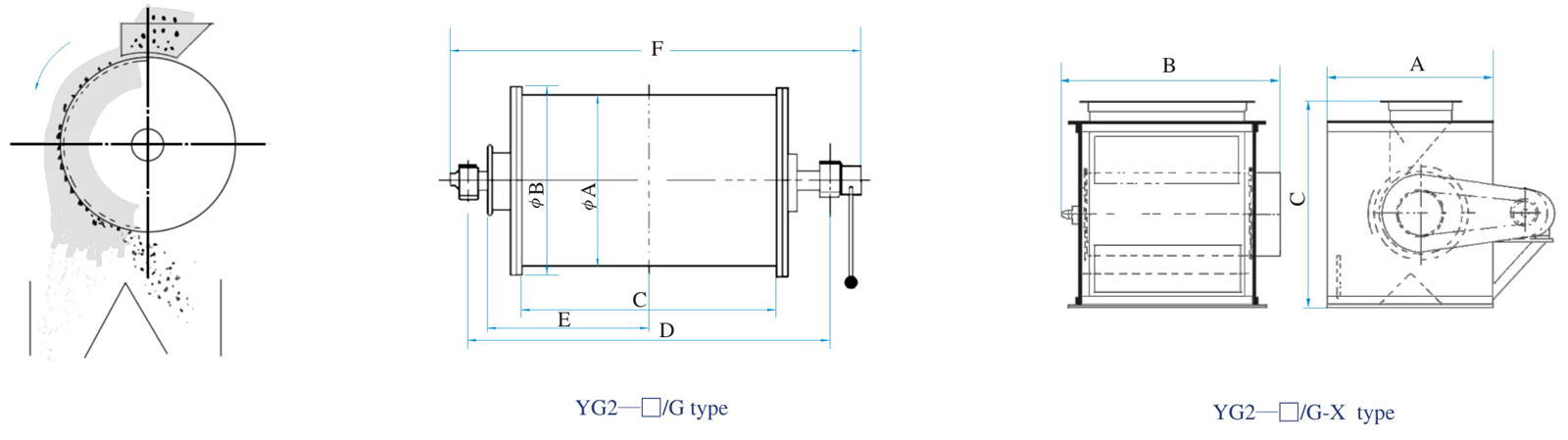

Operation principle sketch,Overall dimension drawing

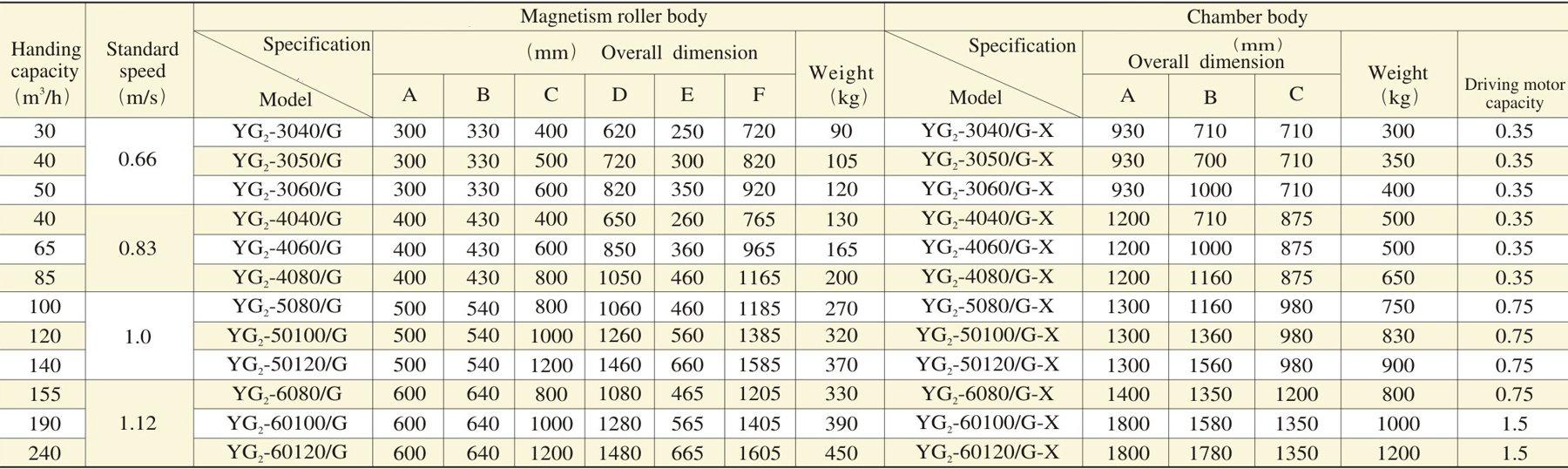

Main technical data
